C5 Hybrid Series

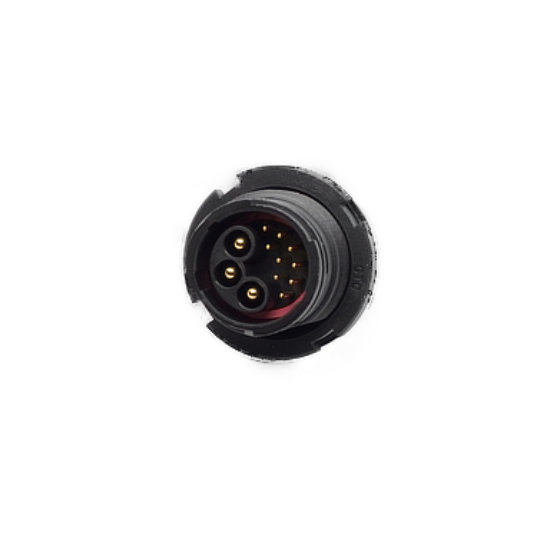

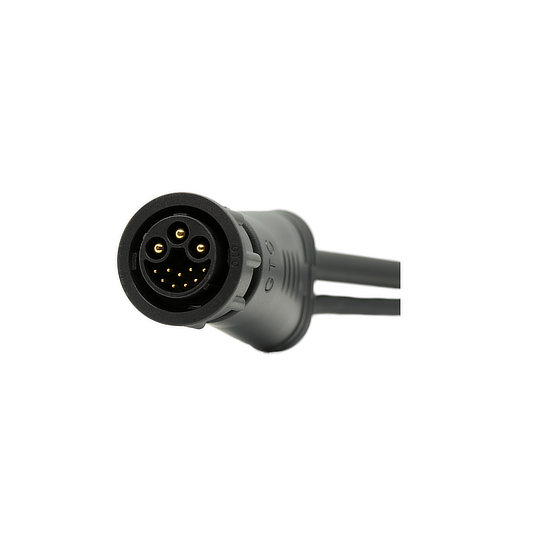

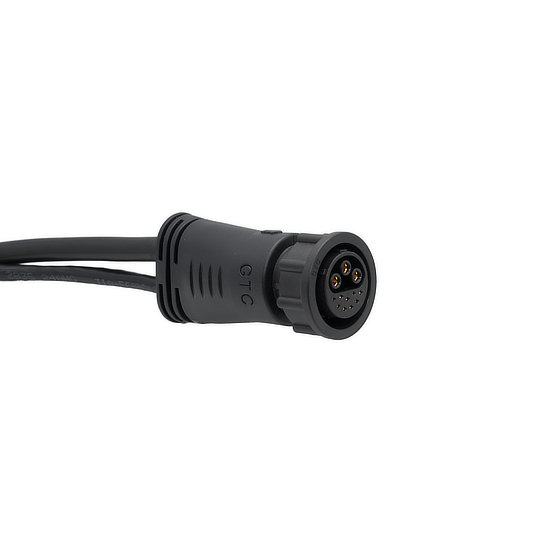

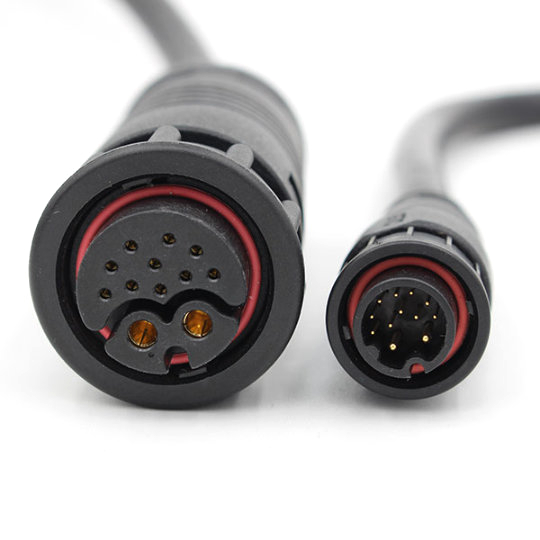

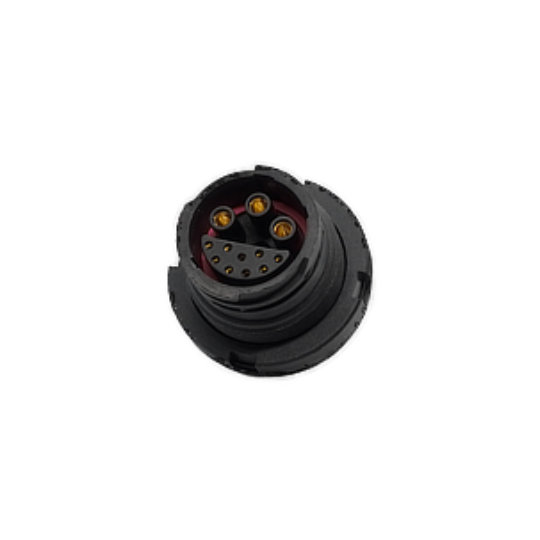

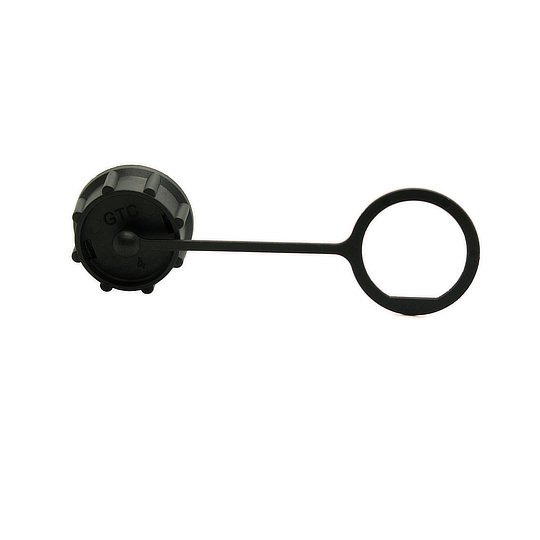

The Hybrid C5 series of waterproof hybrid connectors from GT Contact incorporate both power and signal connections within a single housing. Offered with a twist-lock style coupling and sealed to IP67 the Hybrid C5 series can be used in-line with cable to cable connections or for cable to panel-mount connections, with the panel mount connectors housing either the male or female connections. Designed for panel cut-outs of 29.4mm with a 3pin power and 9pin signal layout the Hybrid C5 series has a solder style panel termination and pre-wired cable end connectors. The panel connectors are also rear potted giving IP67 protection to products even if the connector is unmated or sealing cap not connected. The Hybrid C5 series is perfect for applications such as Outdoor AP, LED Screens, Outdoor Security Systems, Energy Monitoring Systems, Medical Devices, and Marine Equipment.
