C3 Hybrid Series

    The Hybrid C3 series of waterproof hybrid connectors from GT Contact incorporate both power and signal connections within a single housing. Offered with a bayonet-style coupling and sealed to IP67 the Hybrid C3 series can be used in-line with cable to cable connections or for cable to panel-mount connections, with the panel mount connectors housing the female connections. Designed for panel cut-outs of 20.75mm with a 2 or 3pin power and 2 pin signal layout the Hybrid C3 series has a solder style panel termination and pre-wired cable end connectors. The panel connectors are also rear potted giving IP67 protection to products even if the connector is unmated or sealing cap not connected. The Hybrid C3 series is perfect for applications such as Outdoor AP, LED Screens, Outdoor Security Systems, Energy Monitoring Systems, Medical Devices, and Marine Equipment.

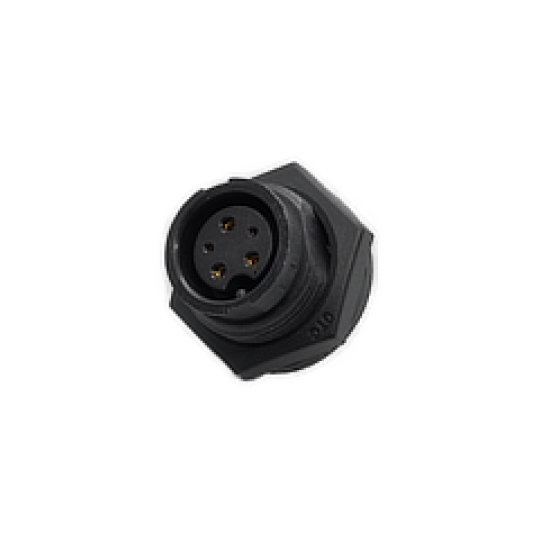

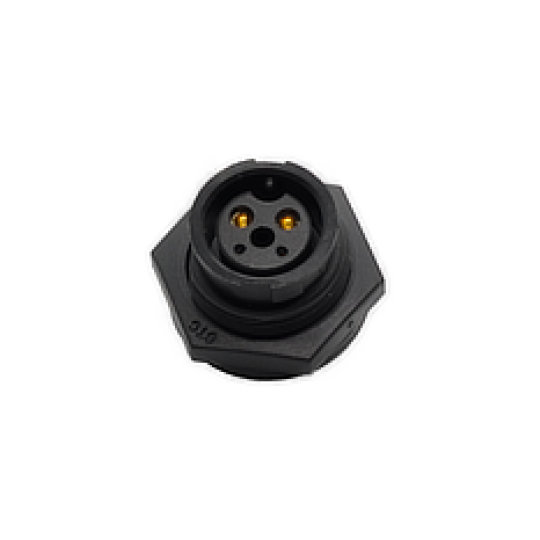

    C3 Hybrid Series — image 1 C3 Hybrid Series — image 2 C3 Hybrid Series — image 3 C3 Hybrid Series — image 4 C3 Hybrid Series — image 5
    GT Connect logo

    Product Variations

    8 results
    Product Code Panel Cut out Size Inches Compliance Number of Pins IP Rating Current Rating A Gender Termination Style Mating Style Housing Material Housing Style
    GT1D3202-0A320(FS) 13/16" RoHS 3, 2 IP67 10, 2 Female Solder Bayonet Plastic Front-nut Panel Mount
    GT1D3202-08220 13/16" RoHS 2, 2 IP67 10, 2 Female Solder Bayonet Plastic Front-nut Panel Mount
    GT1D3202-082A0(FS) 13/16" RoHS 2, 10 IP67 15, 2 Female Solder Bayonet Plastic Front-nut Panel Mount
    GT1D3308-08270(S) 13/16" RoHS 2, 3, 4 IP67 15, 2, 2 Male, Female Solder Bayonet Plastic Front-nut Panel Mount
    GT1D3223-0A327-XX 13/16" RoHS 3, 2 IP67 10, 2 Male Pre-wired Bayonet Plastic Cable Mount
    GT1D3223-28221-XX 13/16" RoHS 2, 2 IP67 10, 2 Male Pre-wired Bayonet Plastic Cable Mount
    GT1D3263-282A1-XX(F) 13/16" RoHS 2, 10 IP67 15, 2 Male Pre-wired Bayonet Plastic Cable Mount
    GT1D3329-08271-XX 13/16" RoHS 2, 3, 4 IP67 15, 2, 2 Male, Female Pre-wired Bayonet Plastic Cable Mount
