C4 Hybrid Series

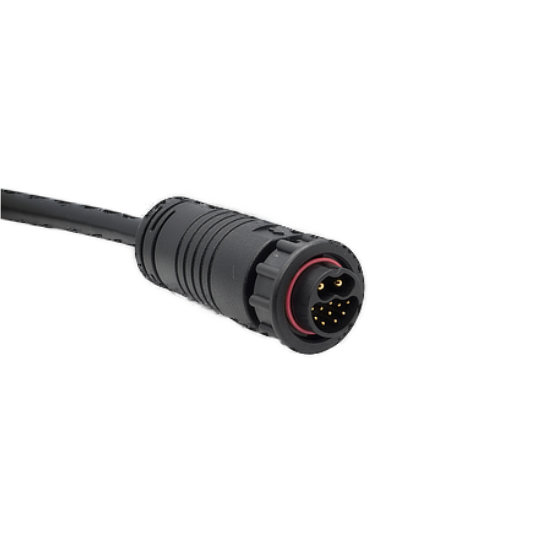

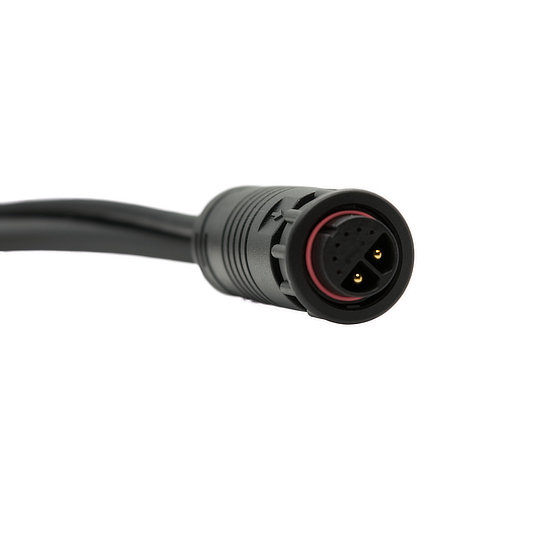

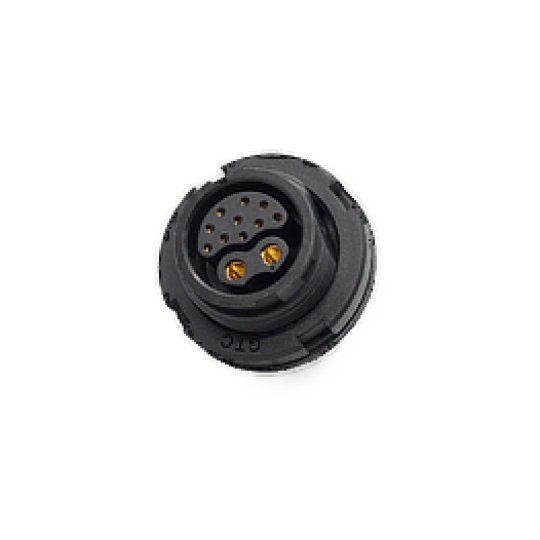

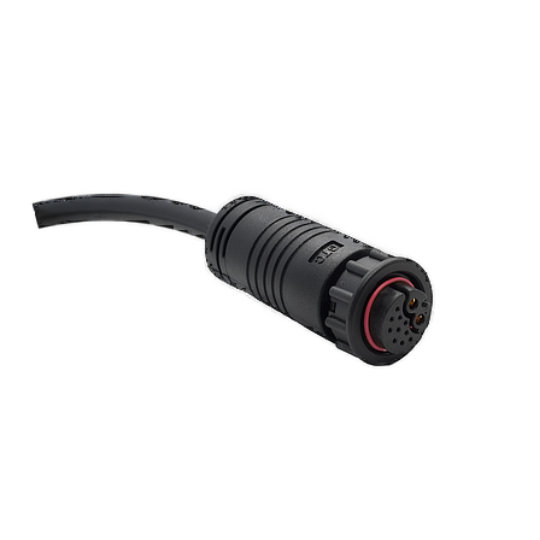

    The Hybrid C4 series of waterproof hybrid connectors from GT Contact incorporate both power and signal connections within a single housing. Offered with a bayonet-style coupling and sealed to IP67 the Hybrid C4 series has a cable to panel-mount design, with the panel connector housing either the male or female connections. Designed for panel cut-outs of 25.5mm with a 2pin power and 10pin signal layout the Hybrid C4 series has a solder style panel termination and pre-wired cable end connectors. The panel connectors are also rear potted giving IP67 protection to products even if the connector is unmated or sealing cap not connected. The Hybrid C4 series is perfect for applications such as Outdoor AP, LED Screens, Outdoor Security Systems, Energy Monitoring Systems, Medical Devices, and Marine Equipment.

    C4 Hybrid Series — image 1 C4 Hybrid Series — image 2 C4 Hybrid Series — image 3 C4 Hybrid Series — image 4 C4 Hybrid Series — image 5 C4 Hybrid Series — image 6 C4 Hybrid Series — image 7
    GT Connect logo

    Product Variations

    8 results
    Product Code Panel Cut out Size Inches Compliance Number of Pins IP Rating Current Rating A Gender Termination Style Mating Style Housing Material Housing Style
    GT1D4202-052A0(FS) 1" RoHS 2, 10 IP67 25, 5 Female Solder Bayonet Plastic Front-nut Panel Mount
    GT1D4203-052A0(FS) 1" RoHS 2, 10 IP67 25, 5 Male Solder Bayonet Plastic Front-nut Panel Mount
    GT1D4292-052A0(FS) 1" RoHS 2, 10 IP67 25, 5 Female Solder Bayonet Plastic Front-nut Panel Mount
    GT1D4293-052A0(FS) 1" RoHS 2, 10 IP67 25, 5 Male Solder Bayonet Plastic Front-nut Panel Mount
    GT1D4222-052A8-XX(F) 1" RoHS 2, 10 IP67 25, 5 Female Pre-wired Bayonet Plastic Cable Mount
    GT1D4223-052A8-XX(F) 1" RoHS 2, 10 IP67 25, 5 Male Pre-wired Bayonet Plastic Cable Mount
    GT1D42A2-052A8-XX(F) 1" RoHS 2, 10 IP67 25, 5 Female Pre-wired Bayonet Plastic Cable Mount
    GT1D42A3-052A8-XX(F) 1" RoHS 2, 10 IP67 25, 5 Male Pre-wired Bayonet Plastic Cable Mount
