TS3 Series
The TS3 Series is the world’s smallest low power industrial Joystick. Featuring 3.3V Hall effect architecture for energy efficient long life performance, the TS3 Series is ideal for battery powered applications including UAV and UGV remote controls. Constructed with an M8 x 1mm threaded body to provide IP67 above panel sealing, this micro joystick’s optimized design offers proportional control in a total package size measuring 0.81” x 0.55”.
Low Profile
Product Variations
Actuator Style
Limter Style
Axes
18 results
| Product Code | Weight g | Supply Current mA | Supply Voltage VDC | Compliance | Actuator Style | Limter Style | Axes | Pushbutton | IP Rating | Centering | Output Options | Termination | Colour | Mounting Style | Angular travel each direction from center | Expected Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TS3-1-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Castle Cap | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |

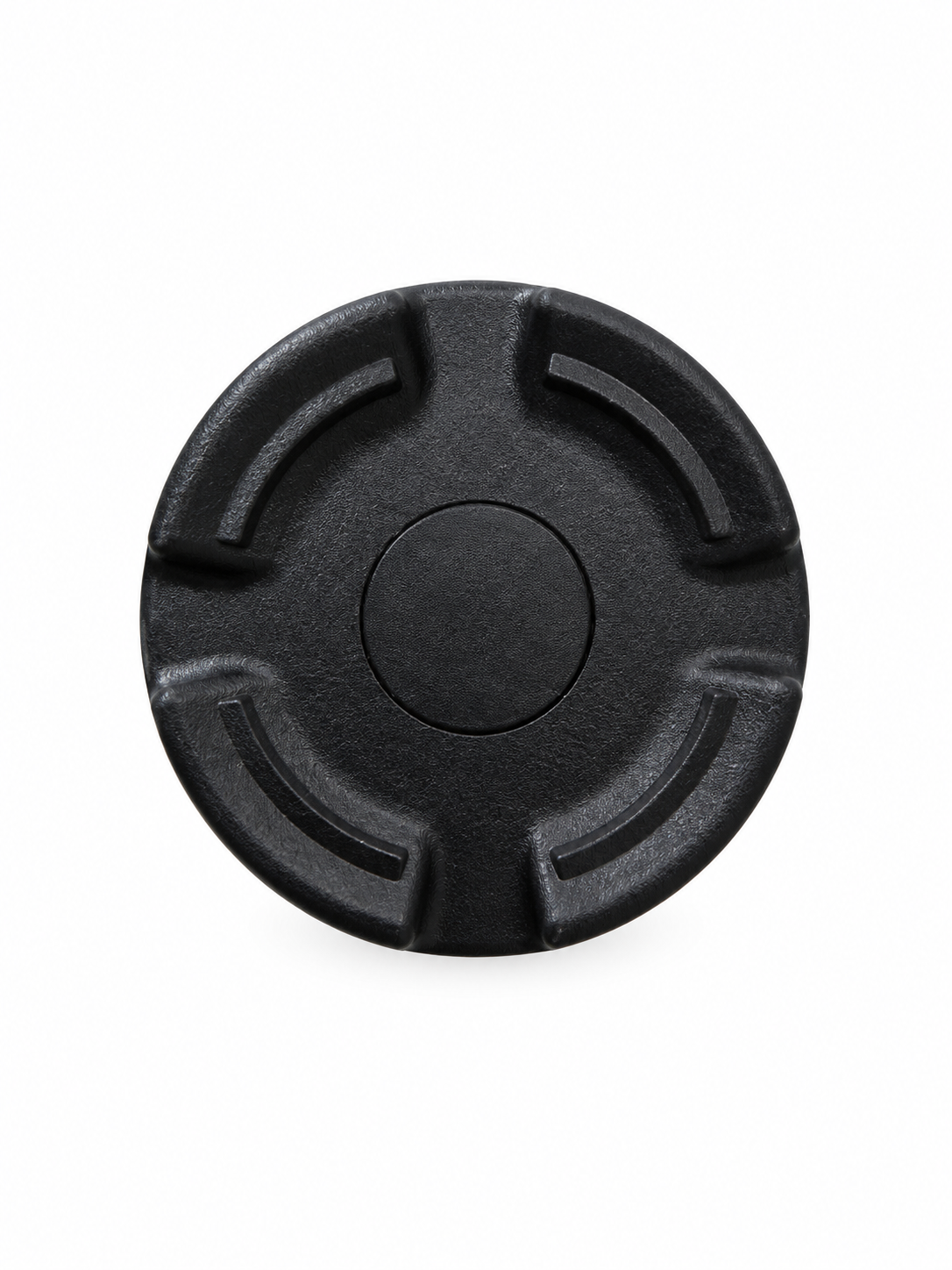

| TS3-2-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Round 4 Way Indicator | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
| TS3-3-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Convex | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
| TS3-4-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Concave | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
| TS3-H5-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Hard Plastic Castle | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
| TS3-H6-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Convex Hard Plastic | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
| TS3-H7-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Convex Hard Plastic Notched | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |

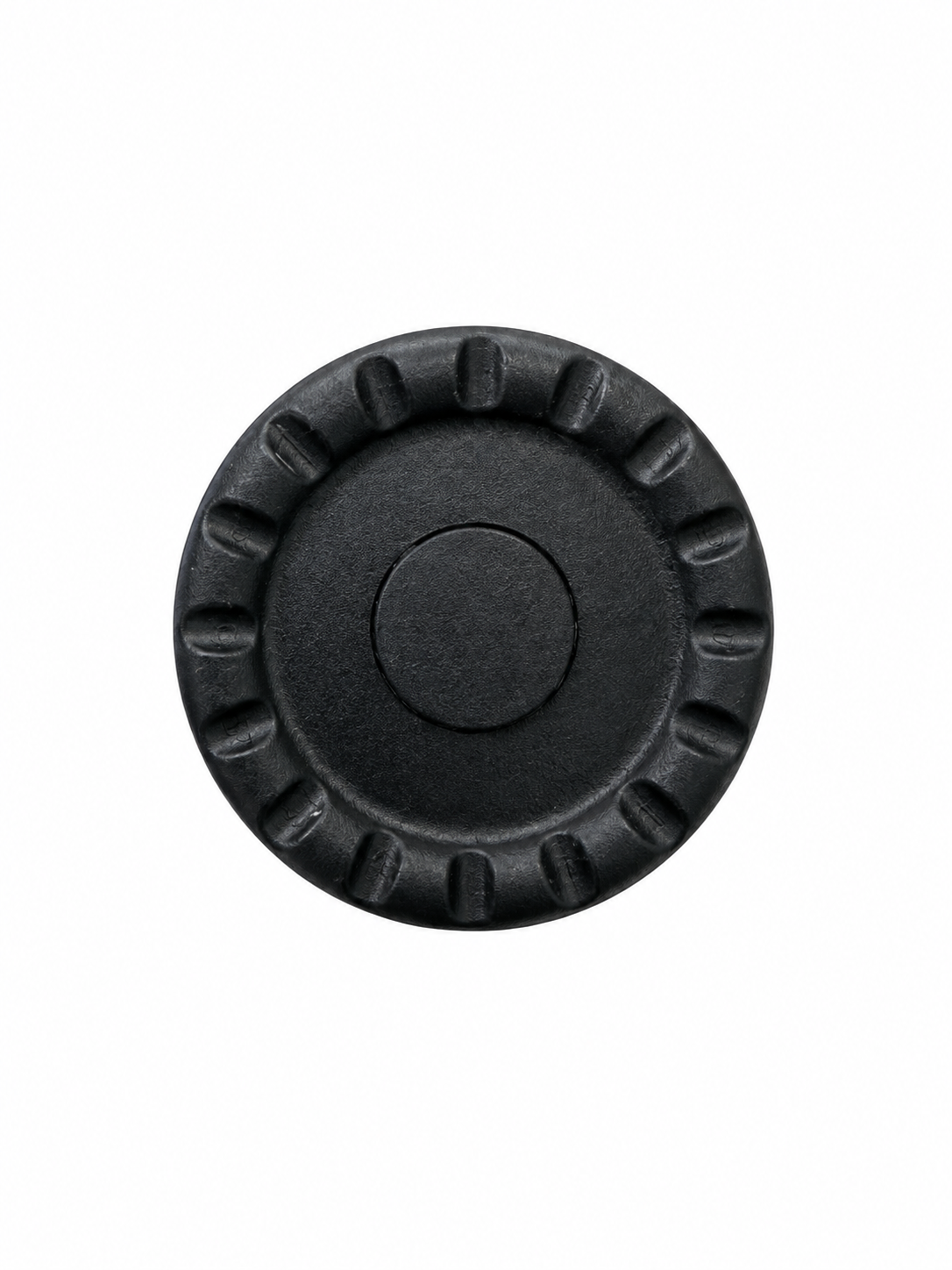

| TS3-H8-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Hard Plastic Ribbed | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
| TS3-H9-S-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Hard Plastic Single Axis | Square | 2 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
| TS3-1-Y-1-A-1-BK | 3 | 8 | 3.3 | RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN6100-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV | Castle Cap | Y Limiter | 1 | No | IP67 | Spring Return | 3.3V SPI | FPC 25mm Length | Black | M8 x 1mm | 10º | 2.5 Million actuations |
