SY13 Series

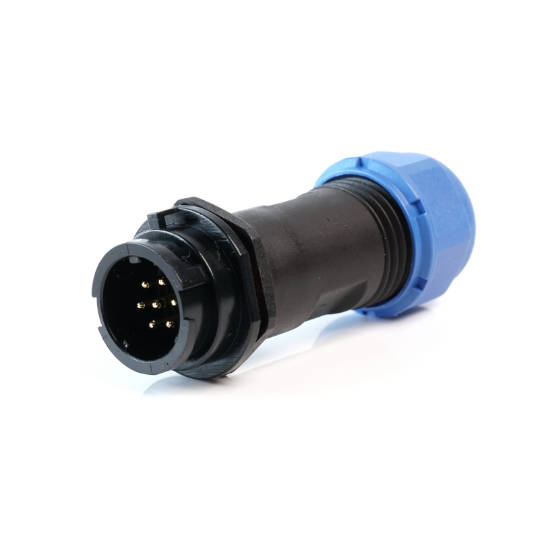

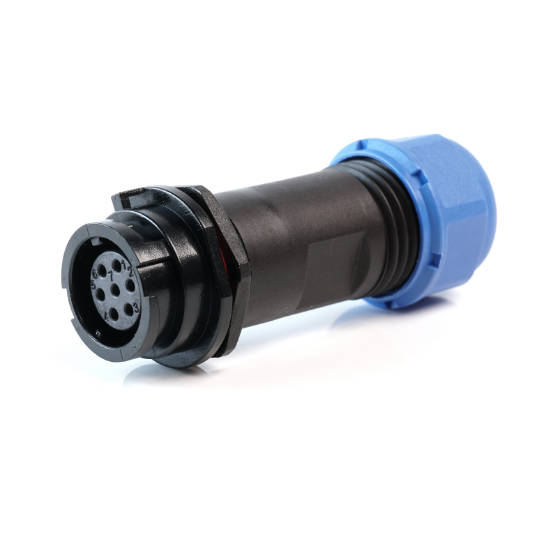

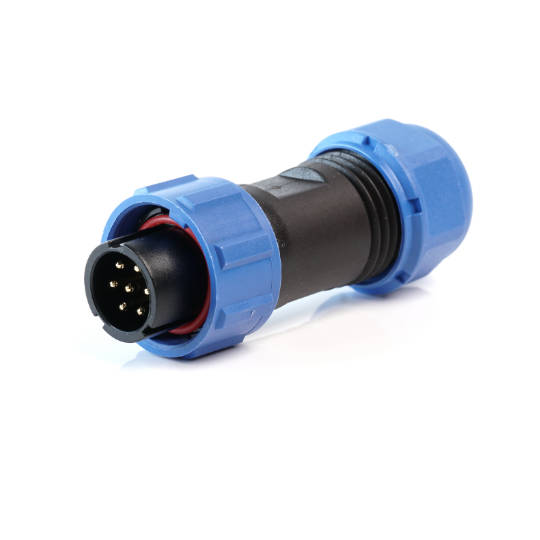

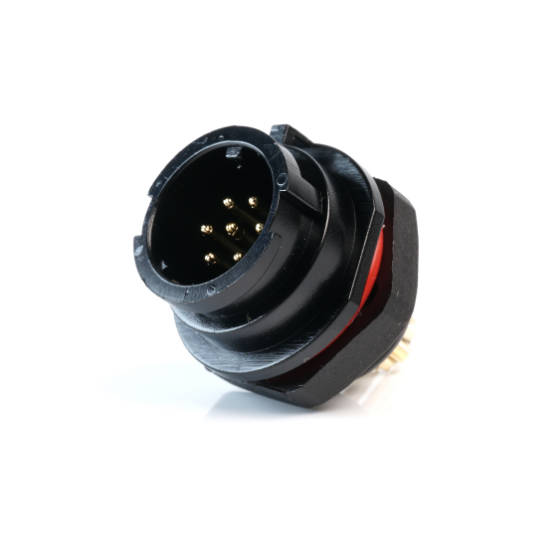

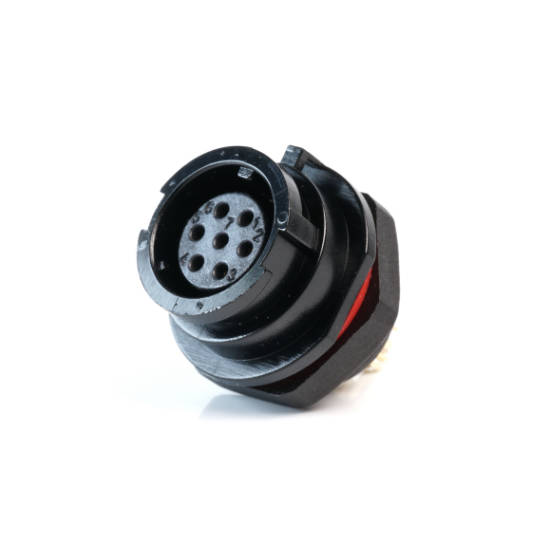

The SY13 Series of waterproof connectors from Weipu are ruggedly built connectors with bayonet style couplings and weather sealing to IP67. This makes these connectors ideal for both indoor and outdoor applications. Available in panel mount, cable mount and in-line cable mount options providing the choice of a cable to cable connection or cable to panel-mount connection with either end been a male or female connection. The SY13 series has been created so that the panel mount connectors fit a 13mm cut out with the option of using a 12.3mm by 13mm D-cut to ensure the connector does not twist. The entire range of SY13 connectors have solder terminals for easy termination and the contacts are gold plated for better conductivity. The cable mount connectors are available with two cable size diameters these being 4-6.5mm or 5-8mm allowing for a selection of cables to be mated. With its small body size and quick-connect bayonet mating, the SY13 connectors are ideal for power or data applications including Outdoor Lighting, LED Screens, Outdoor Security Cameras, and Industrial Control Systems.
