RM-W Series

    The RM-W series of high-performance deep-sea screw-locking metal connectors from Raymo are IP68 rated connectors designed specifically for underwater and harsh environment applications. The RM-W series is ideal for use in marine technology and petroleum exploration thanks to its robust housing and ability to withstand water pressure at depths of up to 300 meters. These connectors can be used in precision applications such as subsea control systems, medical equipment, testing and measurement devices, telecommunications, and heavy-duty industrial sensors.

    The benefits of the RM-W series are:

    • Secure high-performance screw-locking system

    • For underwater use up to 300m

    • High pin density contributing to equipment miniaturisation

    • 2 to 16 contacts available

    • Hermetic versions available

    • Robust brass or aluminium housing

    • Alignment key and polarized keying to ensure correct mating

    • 360° EMC shielding

    • Shock resistant CE & RoHS compliant

    • Solder, PCB or 90° PCB terminations

    • -50°C to +250°C operating temperature[

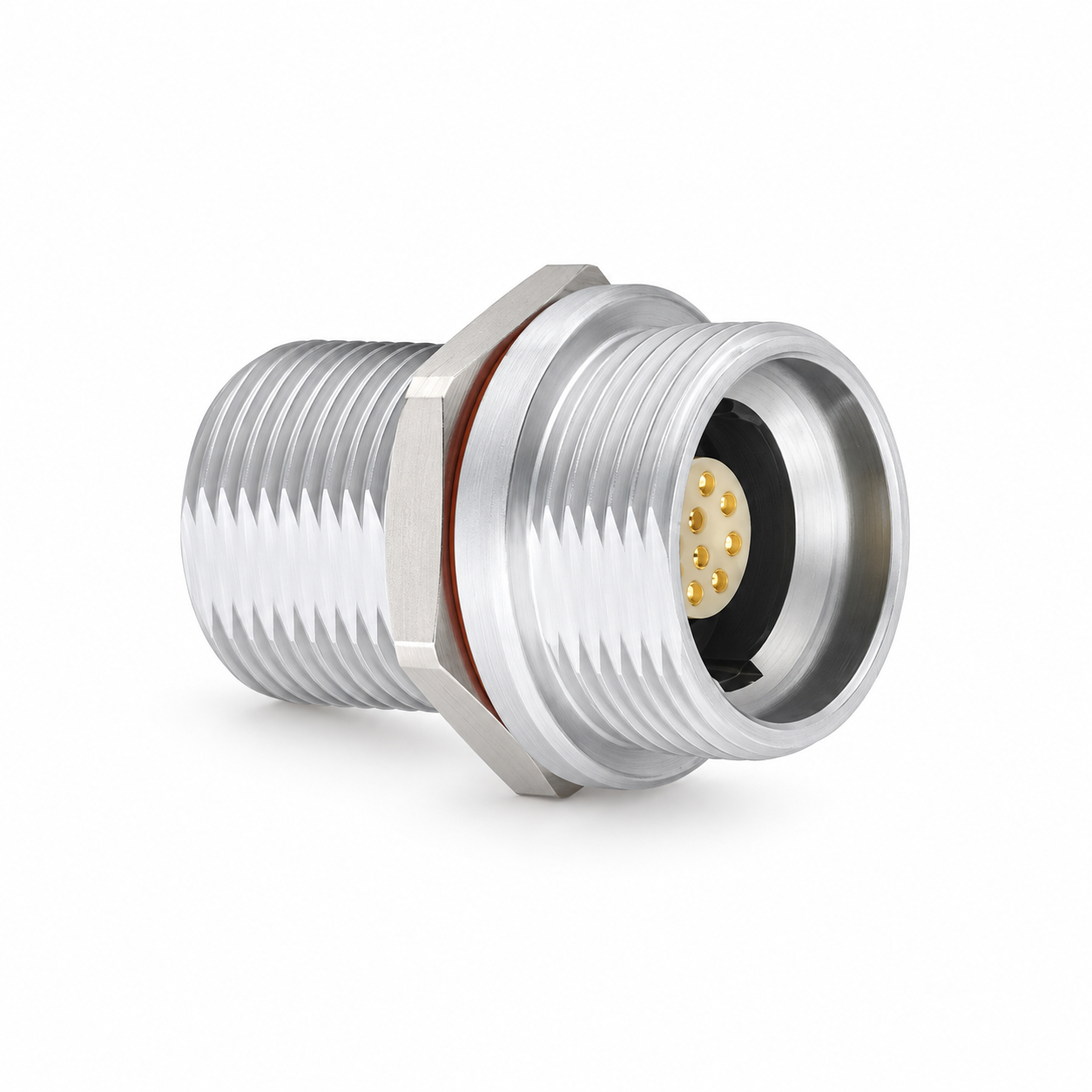

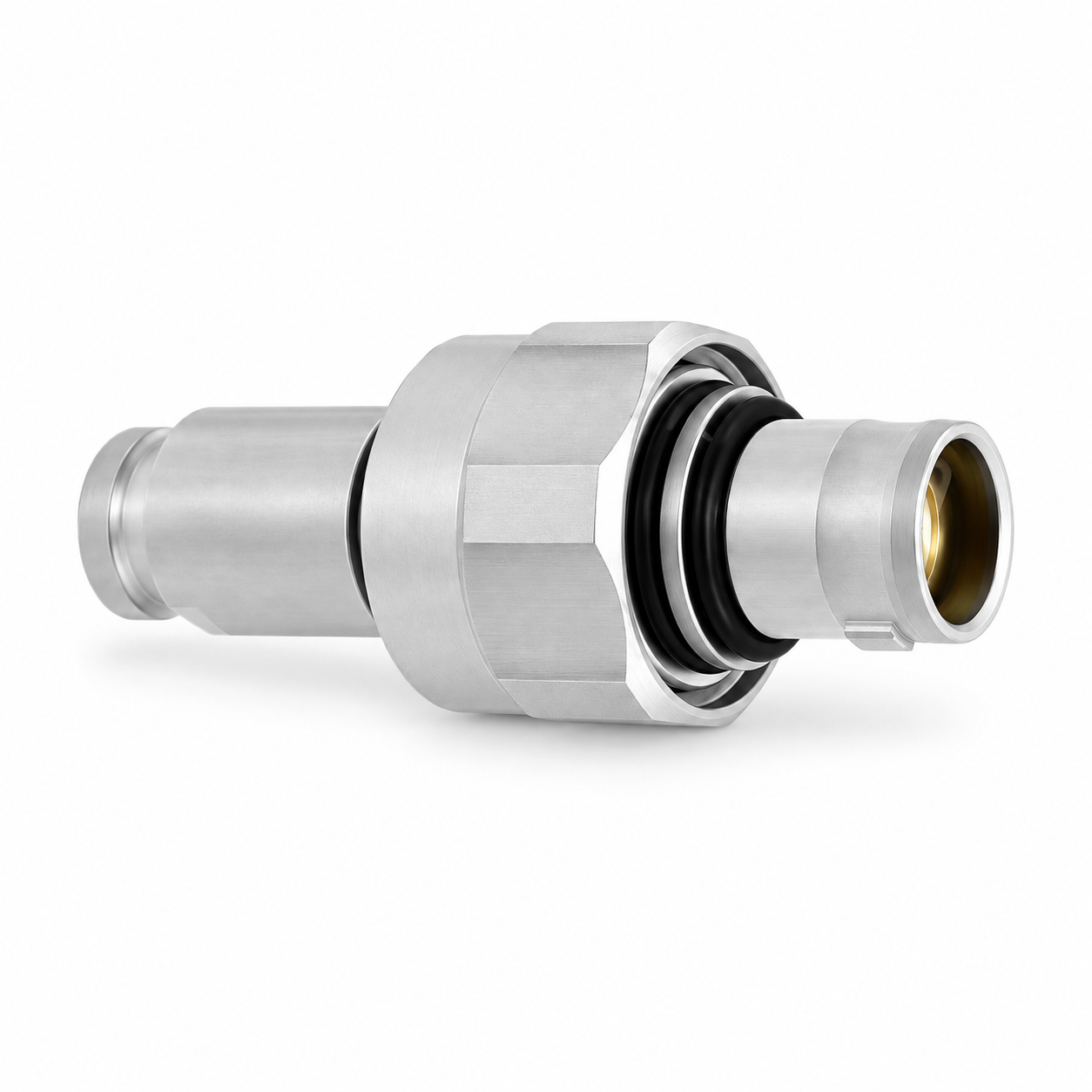

    RM-W Series — image 1 RM-W Series — image 2
    Raymo logo

    Product Variations

    Clear all filters
    Number of Pins
    Current Rating A
    Cable Outer Diameter mm
    Gender
    Housing Style
    Panel Cut out size mm
    180 results
    Product Code Compliance Number of Pins IP Rating Current Rating A Cable Outer Diameter mm Gender Termination Style Mating Style Housing Material Housing Style Panel Cut out size mm
    RM-FVG-0WC-302-JS62 RoHS, CE 2 IP68 10 8-16 Male Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-303-JS62 RoHS, CE 3 IP68 8 8-16 Male Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-304-JS62 RoHS, CE 4 IP68 7 8-16 Male Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-305-JS62 RoHS, CE 5 IP68 6.5 8-16 Male Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-306-JS62 RoHS, CE 6 IP68 2.5 8-16 Male Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-307-JS62 RoHS, CE 7 IP68 2.5 8-16 Male Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-309-JS62 RoHS, CE 9 IP68 2 8-16 Male Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-302-KS62 RoHS, CE 2 IP68 10 8-16 Female Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-303-KS62 RoHS, CE 3 IP68 8 8-16 Female Solder Threaded Metal Cable Mount -
    RM-FVG-0WC-304-KS62 RoHS, CE 4 IP68 7 8-16 Female Solder Threaded Metal Cable Mount -
    ← of 18 →
