MSA Series

    The MSA Series is a single axis, Hall effect thumb controller. Designed for both control grip and panel mount applications, the “micro” size allows for multiple MSAs to fit adjacent to one another. The MSA is available with a one piece elastomer actuator that offers a combination of premium user feel with IP67 above panel sealing. The MSA ships with an under panel mounting clip and a multi-conductor mating wire harness.

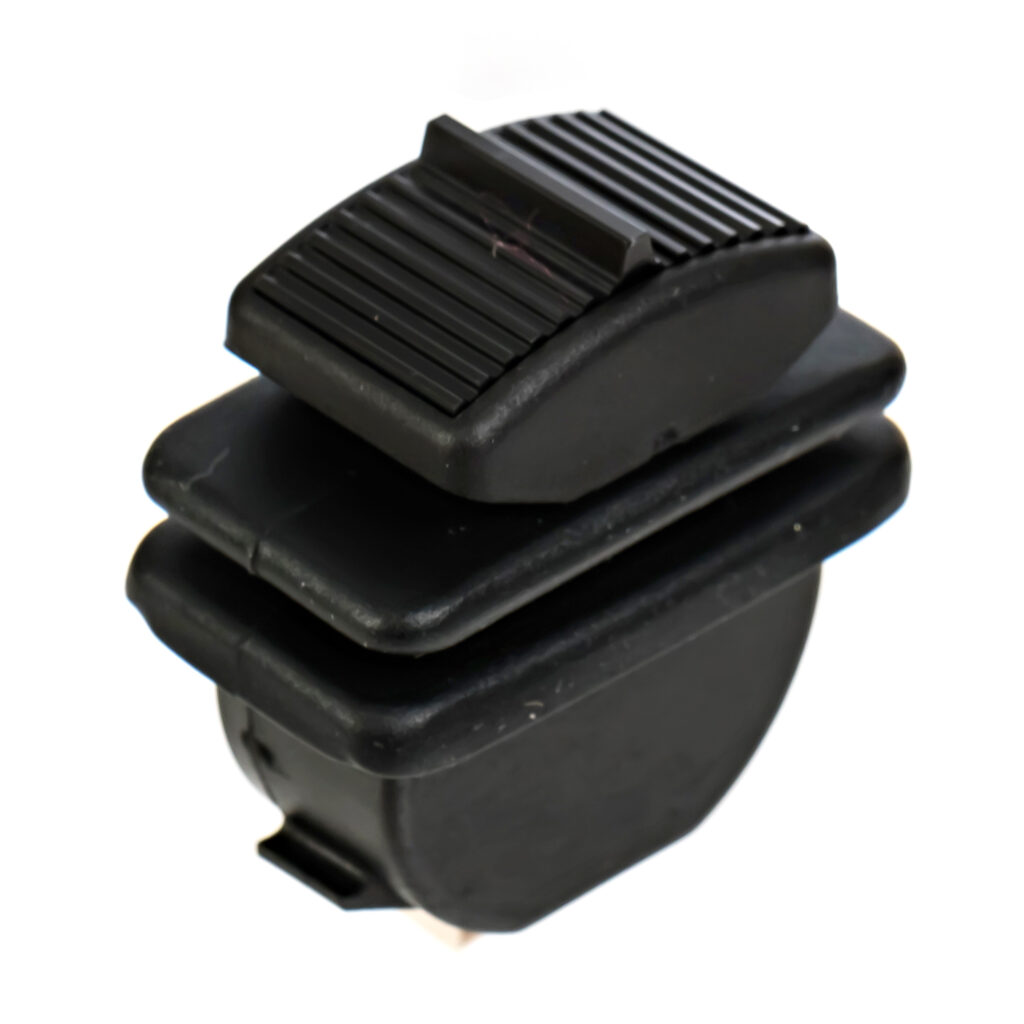

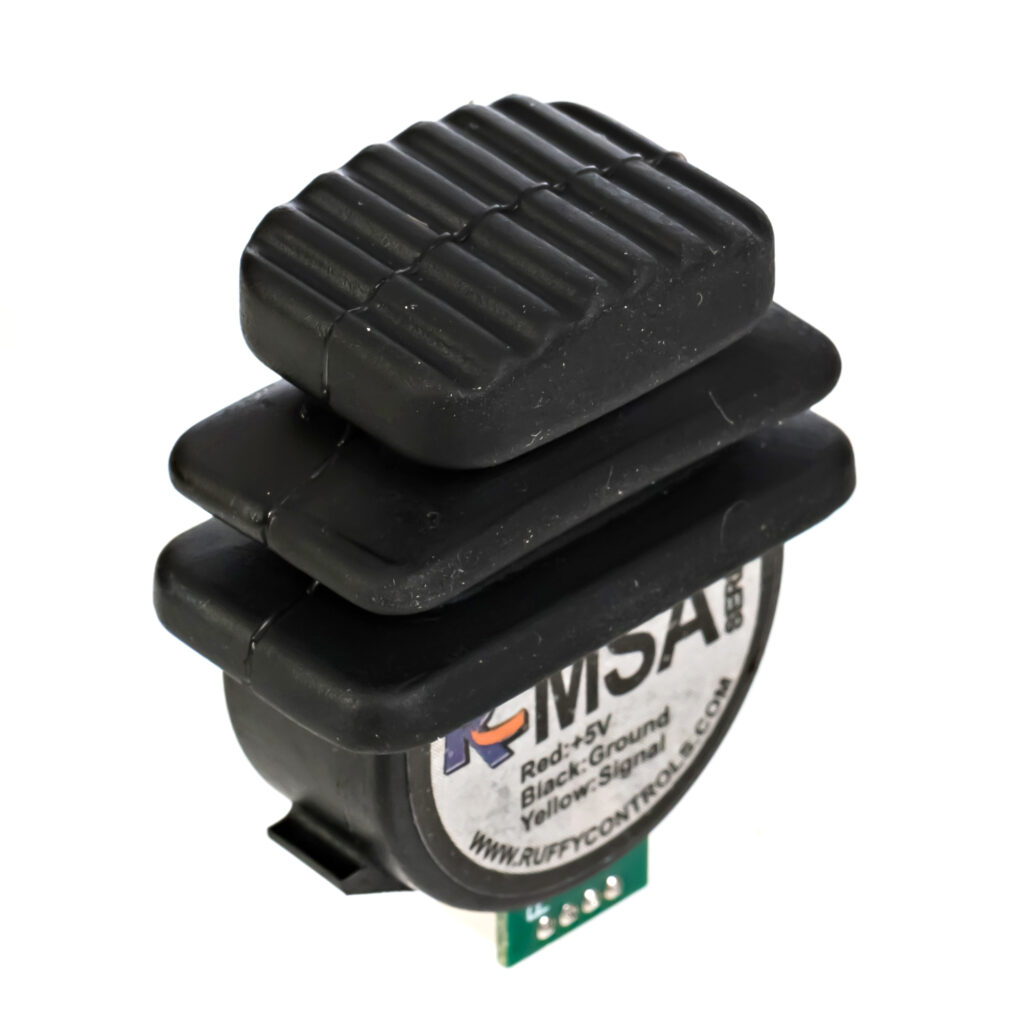

    MSA Series — image 1 MSA Series — image 2
    Ruffy logo

    Product Variations

    Clear all filters
    Actuator Style
    Output Options
    Colour
    Mounting Style
    240 results
    Product Code Weight g Max Vertical Load lbf Max Horizontal Load lbf Supply Current mA Supply Voltage VDC Compliance Actuator Style Axes Pushbutton IP Rating Centering Output Options Termination Colour Mounting Style Angular travel each direction from center Expected Life
    MSA-1-1-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex Knurled 1 No IP67 Spring Return 0-5VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-2-1-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex with Center Tab 1 No IP67 Spring Return 0-5VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-1-2-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex Knurled 1 No IP67 Spring Return 0.5-4.5VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-2-2-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex with Center Tab 1 No IP67 Spring Return 0.5-4.5VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-1-3-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex Knurled 1 No IP67 Spring Return 0.25-4.75VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-2-3-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex with Center Tab 1 No IP67 Spring Return 0.25-4.75VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-1-4-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex Knurled 1 No IP67 Spring Return 1-4VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-2-4-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex with Center Tab 1 No IP67 Spring Return 1-4VDC 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-1-5-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex Knurled 1 No IP67 Spring Return 0-5VDC Sensor 1 : 0-5VDC Sensor 2 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    MSA-2-5-BK-1-2 15 50 50 20 5 RoHS, REACH, EN61000-4-3 Compliance to 30A/m, EN61000-6-3, EN61000-4-2 Compliance to +/-15kV/+/-8kV, SAE J1455 Section 4.9 & MIL-STD810G 514.6, SAE J1455 Section 4.10 & MIL-STD-202G Convex with Center Tab 1 No IP67 Spring Return 0-5VDC Sensor 1 : 0-5VDC Sensor 2 10” 28AWG with Molex 0510210400 Black Drop-In 2 Screw Mount 25º 3 Million actuations
    ← of 24 →
