M25 Power Series

    The M25 series of waterproof Power connectors from GT Contact are ruggedly built with push-lock type couplings (coupling tools also available) and sealed to IP67. Designed for panel cut-outs of 25.2mm the M25 series have 3 gold-plated contacts with screw style terminations. Electrically rated to 30A these connectors can be used in-line with cable to cable connections or for cable to panel-mount connections, with a choice of either end being a male or female connection. The M25 series is perfect for applications such as Inverters, Outdoor Motors, HVAC, Outdoor Lighting, LED Screens, Outdoor Security Systems, Solar Energy, Medical Devices, Marine Equipment and Industrial Control Systems.

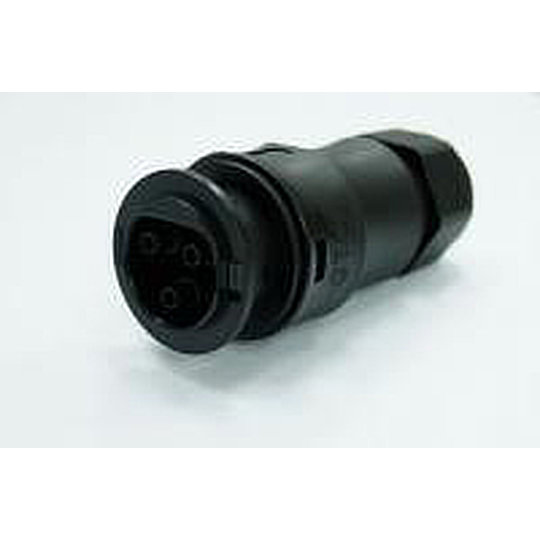

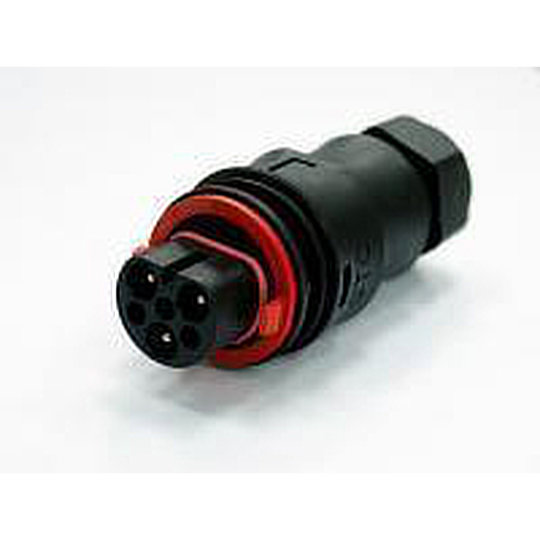

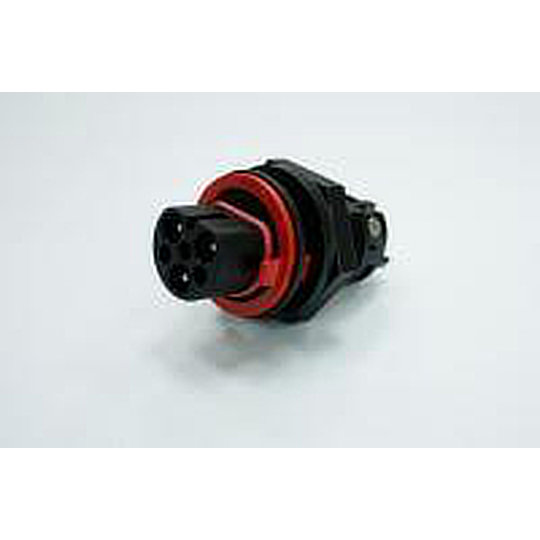

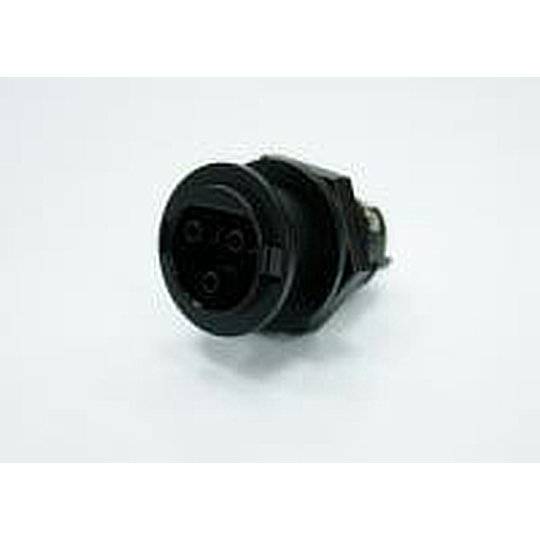

    M25 Power Series — image 1 M25 Power Series — image 2 M25 Power Series — image 3 M25 Power Series — image 4
    GT Connect logo

    Product Variations

    4 results
    Product Code Compliance Number of Pins IP Rating Current Rating A Voltage Rating VAC Gender Termination Style Mating Style Panel Cut out size mm Housing Material Housing Style
    GT1E2400-41030 RoHS 3 IP67 30 600 Female Screw Push-Lock 25 Plastic Rear-nut Panel Mount
    GT1E2401-41030 RoHS 3 IP67 30 600 Male Screw Push-Lock 25 Plastic Rear-nut Panel Mount
    GT1E2410-41033 RoHS 3 IP67 30 600 Female Screw Push-Lock - Plastic Cable Mount
    GT1E2411-41033 RoHS 3 IP67 30 600 Male Screw Push-Lock - Plastic Cable Mount
