HDMI

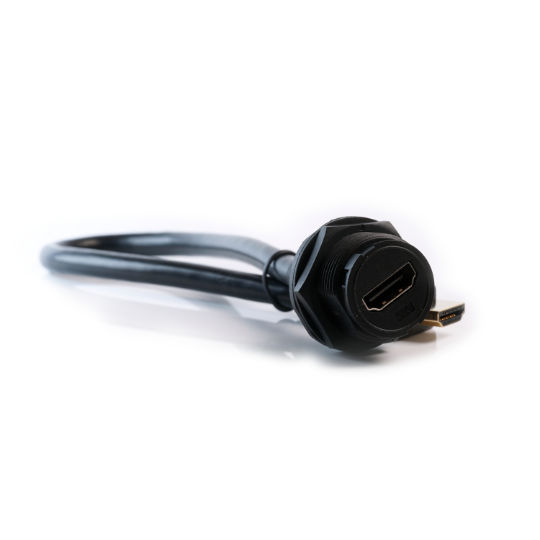

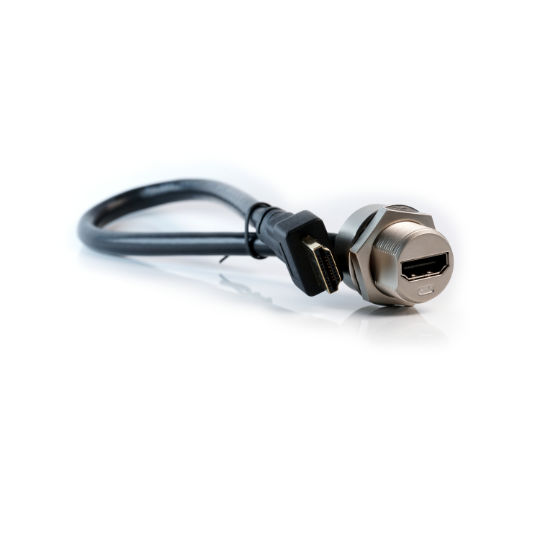

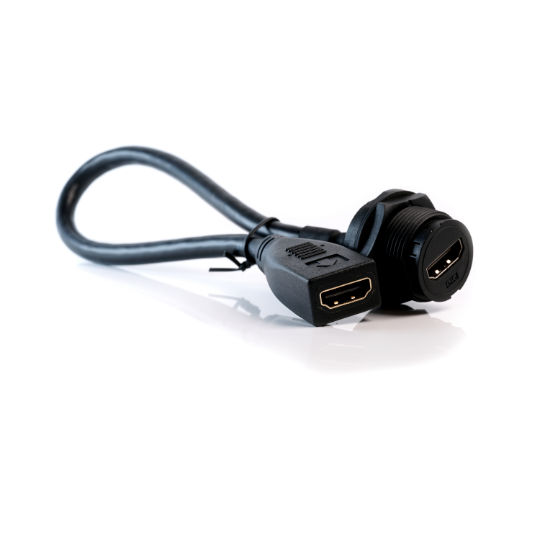

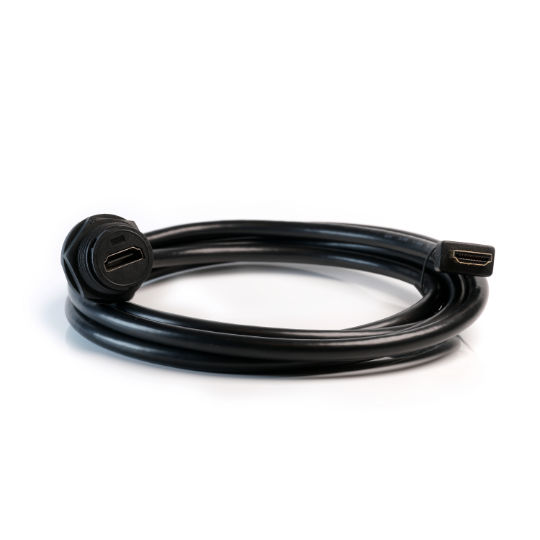

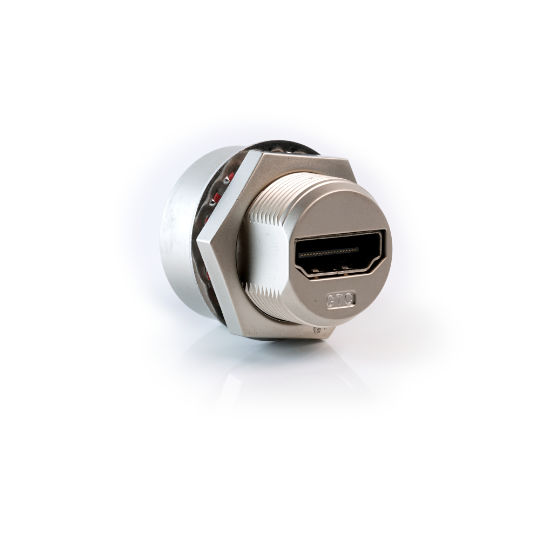

    The HDMI series of waterproof input/output connectors from GT contact are highly ruggedised connectors sealed to IP67. The HDMI series panel connectors are rear potted giving protection to products even if the connector is unmated or sealing cap not connected. Designed with screw or bayonet style mating for panel cut-outs of 20.75mm or 25.5mm with gold-plated contacts and available with DIP pin or pre-wired with HDMI plug or socket terminations. The HDMI series are perfect for when a rugged and weatherproof audio/video connections is required in applications such as Industrial Panels, Medical Devices, Marine Systems and Control Equipment.

    HDMI — image 1 HDMI — image 2 HDMI — image 3 HDMI — image 4 HDMI — image 5 HDMI — image 6 HDMI — image 7
    GT Connect logo

    Product Variations

    Clear all filters
    IP Rating
    Gender
    Termination Style
    Mating Style
    Panel Cut out size mm
    Housing Material
    Housing Style
    Colour
    Pre-Wired Termination
    25 results
    Product Code Current Rating A Compliance IP Rating Gender Termination Style Mating Style Panel Cut out size mm Housing Material Housing Style Colour Type Cable Length mm Pre-Wired Termination
    GT1H1200-10 0.5 RoHS IP67 Female THT Bayonet 25.5 Plastic Front-nut Panel Mount Black HDMI 1.4 - -
    GT1H1200-20 0.5 RoHS IP67 Female 90° THT Bayonet 25.5 Plastic Front-nut Panel Mount Black HDMI 1.4 - -
    GT1H1200-01-XX 0.5 RoHS IP67 Female Pre-wired Bayonet 25.5 Plastic Front-nut Panel Mount Black HDMI 1.4 Various HDMI Socket
    GT1H1200-02-XX 0.5 RoHS IP67 Female Pre-wired Bayonet 25.5 Plastic Front-nut Panel Mount Black HDMI 1.4 Various HDMI Plug
    GT1H1200-03-XX 0.5 RoHS IP67 Female Pre-wired Bayonet 25.5 Plastic Front-nut Panel Mount Black HDMI 1.4 Various -
    GT2H2300-10 0.5 RoHS IP68 Female THT Threaded 20.75 Metal Front-nut Panel Mount Silver HDMI 1.4 - -
    GT2H2300-20 0.5 RoHS IP68 Female 90° THT Threaded 20.75 Metal Front-nut Panel Mount Silver HDMI 1.4 - -
    GT2H2300-01-XX 0.5 RoHS IP68 Female Pre-wired Threaded 20.75 Metal Front-nut Panel Mount Silver HDMI 1.4 Various HDMI Socket
    GT2H2300-01-XX(G) 0.5 RoHS IP68 Female Pre-wired Threaded 20.75 Metal Front-nut Panel Mount Green HDMI 1.4 Various HDMI Socket
    GT2H2300-02-XX 0.5 RoHS IP68 Female Pre-wired Threaded 20.75 Metal Front-nut Panel Mount Silver HDMI 1.4 Various HDMI Plug
    ← of 3 →
