GCK Series

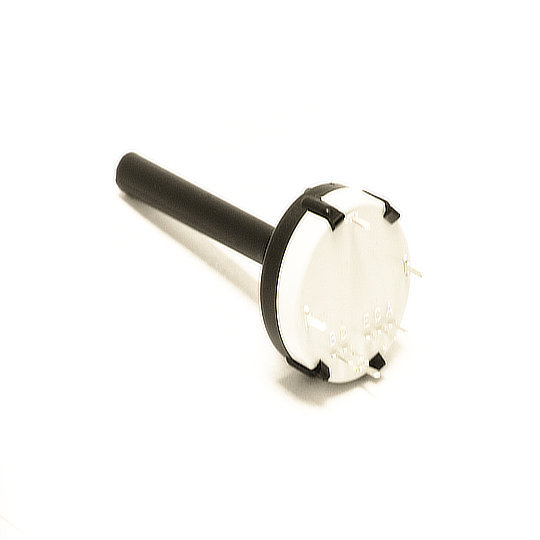

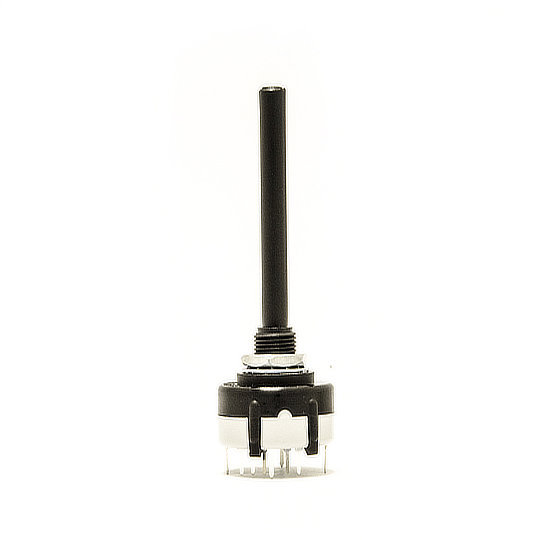

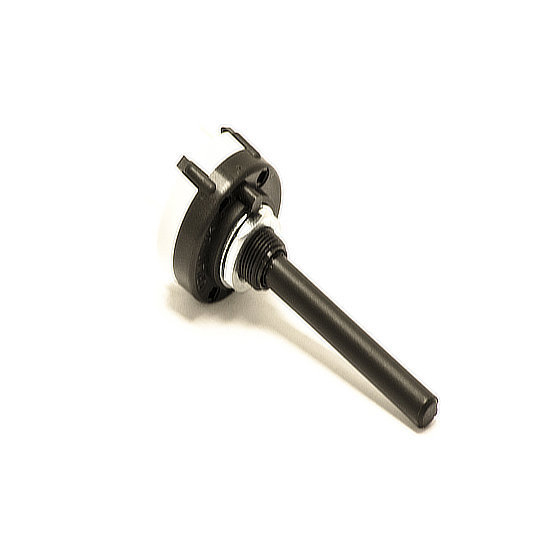

The GCK series of coded rotary switches from Lorlin are single pole switches with between 2 and 16 positions over 360° with hexadecimal Gray coding in standard (22.5° indexing – 4bit) or complimentary (45° indexing – 3bit). Electrically rated to a maximum of 150mA at 50VAC/DC with a mechanical life of 10,000 steps. Designed to fit cut outs of 10mm in imperial or metric models for 9.52 x 32TPI or M10 x 0.75 bushings respectively with spindle lengths of 38mm long (imperial model) or 50mm long (metric model) and PC Pin style terminations. The GCK series are perfect for applications such as Telecommunication Equipment, Computer Peripherals, Networking Systems, Industrial Control Systems and Audio-Video Equipment.
Product Variations
Detent Angle
Coding
Number of Positions
Shaft Diameter mm
Shaft Height mm
16 results
| Product Code | Voltage Rating VAC | Panel Cut out size mm | Housing Material | Mechanical Life | Shaft Material | Termination Plating | Current Rating mA | Compliance | Detent Angle | Coding | Number of Positions | Switching Mode | Torque Ncm | Shaft Style | Shaft Diameter mm | Shaft Height mm | Mounting Style | Bushing | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GCK1016 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 22.5° | 4-Bit Gray | 16.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1020 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 22.5° | 4-Bit Gray Complementary | 16.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1024 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 45° | 3-Bit Gray | 8.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1028 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 45° | 3-Bit Gray Complementary | 8.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1017 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 22.5° | 4-Bit Gray | 16.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1021 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 22.5° | 4-Bit Gray Complementary | 16.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1025 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 45° | 3-Bit Gray | 8.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1029 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 45° | 3-Bit Gray Complementary | 8.0 | Non-Shorting | 4.7 | D-Shaft | 6.0 | 50.0 | Round | Threaded | THT |
| GCK1018 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 22.5° | 4-Bit Gray | 16.0 | Non-Shorting | 4.7 | D-Shaft | 6.35 | 38.0 | Round | Threaded | THT |
| GCK1022 | 24.0 | 10.0 | Polyamide 6.6 G.F | 10000.0 | Polyamide 6.6 G.F | Silver | 150.0 | RoHS | 22.5° | 4-Bit Gray Complementary | 16.0 | Non-Shorting | 4.7 | D-Shaft | 6.35 | 38.0 | Round | Threaded | THT |
