D-Sub

    The D-Sub series of waterproof input/output connectors from GT contact are highly ruggedised connectors sealed to IP67. The D-Sub series panel connectors are rear potted giving protection to products even if the connector is unmated or sealing cap not connected. Designed with push-fit mating with 2 side screws for a solid attachment the D-Sub series have gold-plated contacts in standard 9pin or high density 15 pin configurations with solder terminations and solder (field installable) or pre-wired plugs. The D-Sub series are perfect for when a rugged and weatherproof connector is needed on applications such as Industrial Panels, Medical Devices, Marine Systems and Control Equipment.

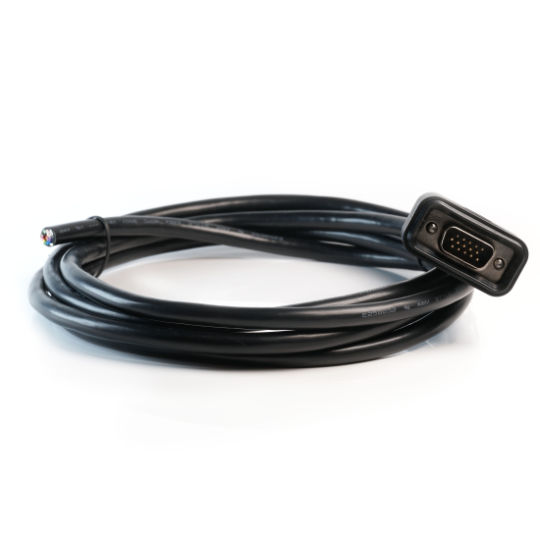

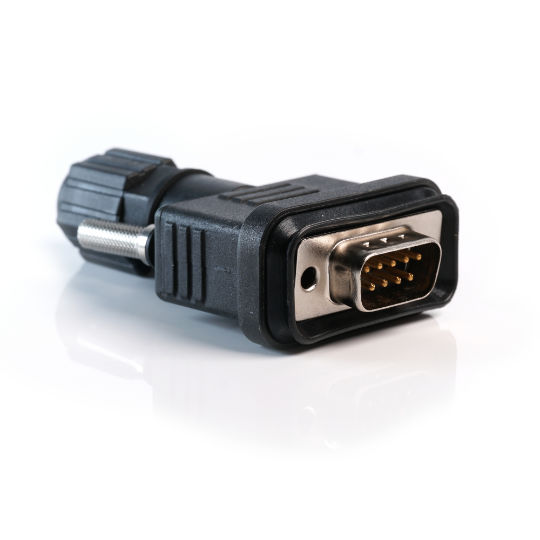

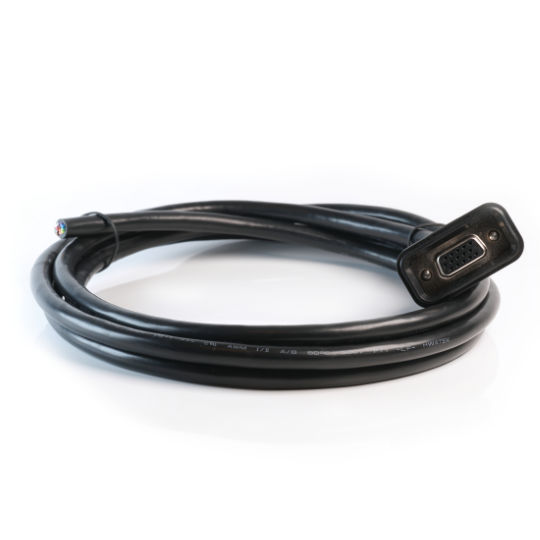

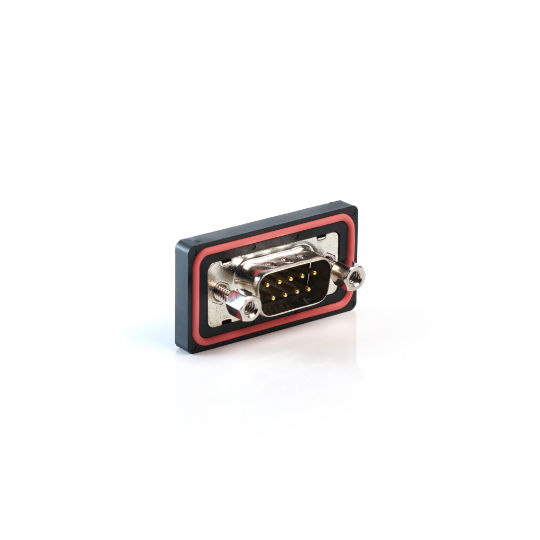

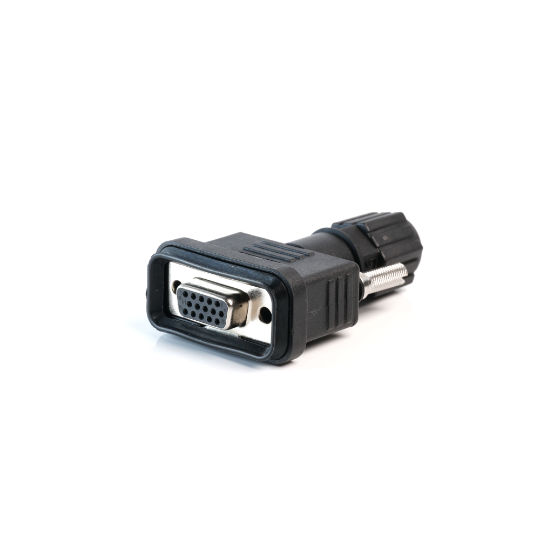

    D-Sub — image 1 D-Sub — image 2 D-Sub — image 3 D-Sub — image 4 D-Sub — image 5 D-Sub — image 6 D-Sub — image 7
    GT Connect logo

    Product Variations

    Clear all filters
    IP Rating
    Number of Contacts
    Gender
    Termination Style
    Housing Style
    Colour
    Pre-Wired Termination
    19 results
    Product Code Current Rating A Max Wire Size AWG Compliance IP Rating Number of Contacts Gender Termination Style Mating Style Panel Cut out size mm Housing Material Housing Style Colour Pre-Wired Termination
    GT146100-02150 5.0 20.0 RoHS IP68 15.0 Female Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT146200-02150 5.0 20.0 RoHS IP68 15.0 Female Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT146300-02150 5.0 20.0 RoHS IP68 15.0 Female Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT141300-02090 5.0 20.0 RoHS IP68 9.0 Female Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT141210-02090 5.0 20.0 RoHS IP68 9.0 Male Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT141410-02090 5.0 20.0 RoHS IP68 9.0 Male Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT141310-02090 5.0 20.0 RoHS IP68 9.0 Male Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT146310-02150 5.0 20.0 RoHS IP68 15.0 Male Solder Push and Screw 20x11 Plastic Panel Mount Black, Silver -
    GT141320-02091-XX 5.0 20.0 RoHS IP67 9.0 Female Pre-wired Push and Screw - Plastic Cable Mount Black -
    GT146320-02151-XX 5.0 20.0 RoHS IP67 15.0 Female Pre-wired Push and Screw - Plastic Cable Mount Black -
    ← of 2 →
