13 Series

    The 134/135/138 series of reflector LED indicators from Sloan are front panel mounted indicators available with a raised reflector style hood. These indicators have a threaded housing that is designed for panel cutouts of 6.2mm and come in a choice of 2-3V LEDs. Alongside the variety of LED colours, the constructed can be either nickel-plated brass, blackened brass or olive drab brass gives designers a choice of aesthetic options. Electrically rated up to 20mA in 5, 12, 24 or 28V the 134/135/13 series comes with a choice of LED pin, solder or pre-wired terminations and can be sealed up to IP68 upon request.

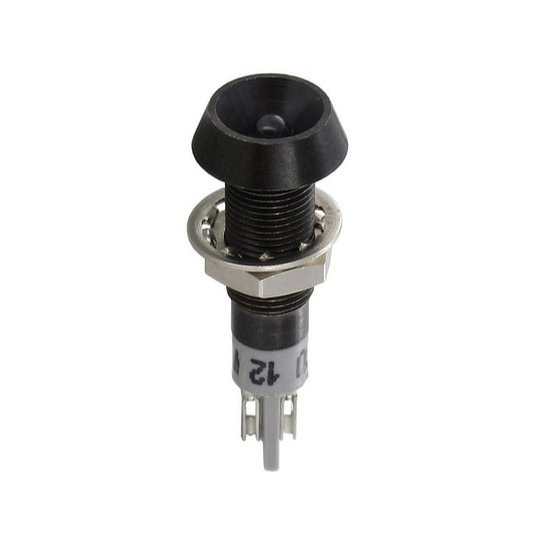

    13 Series — image 1 13 Series — image 2
    Sloan logo

    Product Variations

    Clear all filters
    IP Rating
    Termination Style
    Housing Material
    LED Colour
    Luminous Intensity mcd
    Resistor Voltage VDC
    1260 results
    Product Code Panel Cut out size mm Compliance IP Rating Termination Style Housing Material Mounting Hardware LED Colour Luminous Intensity mcd Resistor Voltage VDC Resister Current mA
    1344B10Y33U0 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 4200 - -
    1344B10Y33UA 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 4200 5 20
    1344B10Y33UB 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 4200 12 20
    1344B10Y33UD 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 4200 24 20
    1344B10Y33UE 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 4200 28 20
    1344B10Y30U0 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 1200 - -
    1344B10Y30UA 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 1200 5 20
    1344B10Y30UB 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 1200 12 20
    1344B10Y30UD 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 1200 24 20
    1344B10Y30UE 6.2 RoHS IP64 Solder Blackened Brass Standard Yellow 1200 28 20
    ← of 126 →
