11 Series

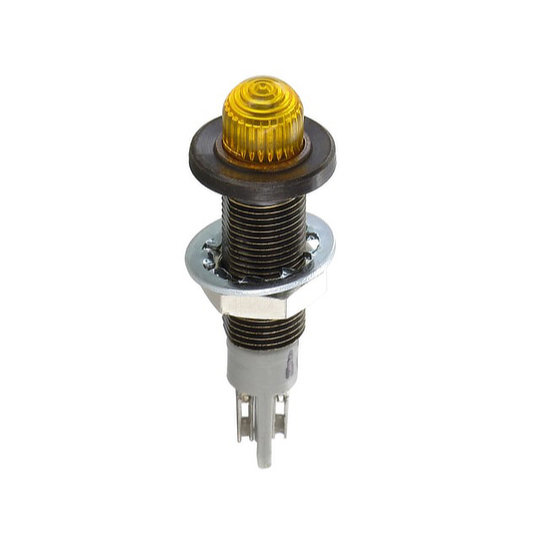

    The 117/119 series of LED indicators with coloured caps from Sloan are front-mounted panel indicators with threaded housing that is designed for panel cut outs of 6.4mm. Available with raised dome style caps in amber, blue, clear, green, red or white colours and a choice of LEDs. The 117/119 series are electrically rated to 20mA at 5V, 12V, 24V or 28V, 15mA at 24V or 14mA at 28V with solder or pre-wired terminations and sealed to IP64, IP67 or IP68. Constructed in either nickel-plated brass, blackened brass or olive drab brass giving designers a choice of casing colours with a variety of options in both LED colour and diode style.

    11 Series — image 1 11 Series — image 2
    Sloan logo

    Product Variations

    Clear all filters
    IP Rating
    Termination Style
    Housing Material
    Lens Colour
    LED Colour
    Luminous Intensity mcd
    Resistor Voltage VDC
    10080 results
    Product Code Panel Cut out size mm Compliance IP Rating Termination Style Housing Material Mounting Hardware Lens Colour LED Colour Luminous Intensity mcd Resistor Voltage VDC Resister Current mA
    1174B11A1Y33U0 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 4200 - -
    1174B11A1Y33UA 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 4200 5 20
    1174B11A1Y33UB 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 4200 12 20
    1174B11A1Y33UD 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 4200 24 20
    1174B11A1Y33UE 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 4200 28 20
    1174B11A1Y30U0 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 1200 - -
    1174B11A1Y30UA 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 1200 5 20
    1174B11A1Y30UB 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 1200 12 20
    1174B11A1Y30UD 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 1200 24 20
    1174B11A1Y30UE 6.2 RoHS IP64 Solder Blackened Brass Standard Amber Yellow 1200 28 20
    ← of 1008 →
