07 & C07A Rotary Coded Switches

Product Type: Rotary Coded Switch

Manufacturer: Elma

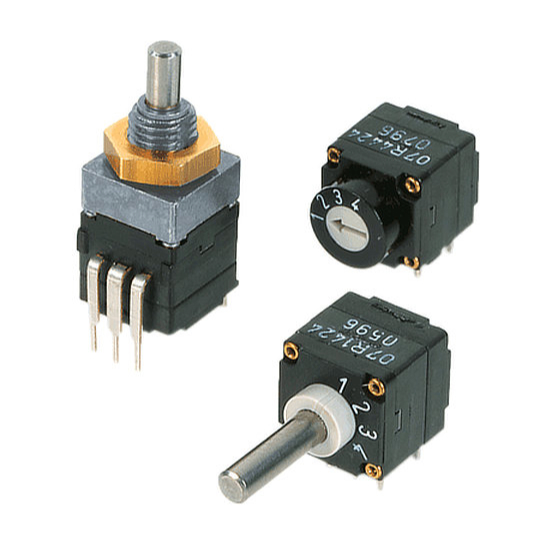

The Type 07 and C07A series from Elma are high precision coded rotary switches that are designed to function in rugged environments.

Or call 01522 244849

This product can also be found in the following categories:

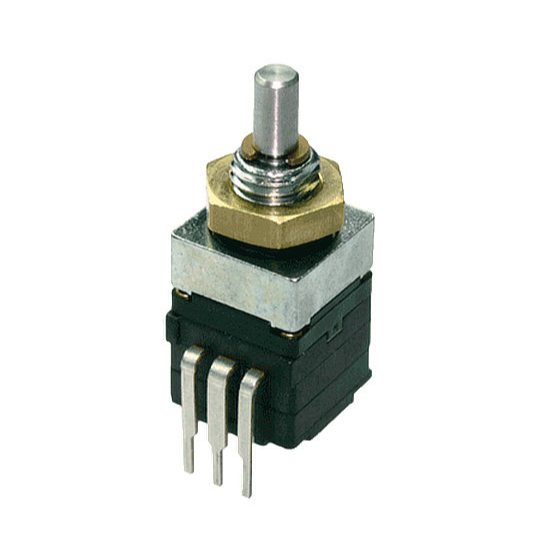

The Type 07 and C07A series from Elma are high precision coded rotary switches that are designed to function in rugged environments. The difference with the C07A series is the inclusion of a threaded bushing within a compact housing, rotation end stops and an IP68 rating. The 07 series do have the option to be customised with threaded bushings,  with rotational end stops or continuous rotation and can be rated to IP68 but in a slightly larger housing.

The 07 series are available in BCD, HEX or Gray coding with the C07A being offered in HEX or Gray Coding only. Both these series have rotations of between 2 and 16 positions and switching torques up to 3.5Ncm. The series also includes gold plated contacts and can have shorting or non-shorting switching modes.

The 07 and C07A series are terminated with THT and reflow versions are available on request, these can also be washable with a sealed contact system. The 07 series can be IP60 as standard up to IP68 at 2 bar for 1 hour with the shaft and front sealing been rated to IP68 5 bar for 4 hours if required.

The large variety of options available in the 07 and C07A series along with their robust design make the series perfect for applications such as Two Way Radio Devices, Target Aiming Devices, Aircraft Transponders, Medical Equipment and Industrial Automation Equipment.

Mechanical Life10,000 Cycles
Output CodingBCD, BCD Complementary, HEX, HEX Complementary, Gray
Switching Positions2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
IP RatingIP60, IP68
Operating Temperature-40°C to +85°C
CODING SWITCHING MODE POSITIONS INDEXING ANGLE PART NUMBER WITH END-STOP PART NUMBER ENDLESS ROTATING
07 Horizontal with shaft, without threaded bushing BCD Shorting 10 (0-9) 36° 07-1133 07-1033
Non-shorting 10 (0-9) 36° 07-1134 07-1034
BCD compl. Shorting 10 (0-9) 36° 07-1143 07-1043
Hex Shorting 16 (0-F) 22.5° 07-1153 07-1053
Non-shorting 16 (0-F) 22.5° 07-1154 07-1054
Hex compl. Shorting 16 (0-F) 22.5° 07-1163 07-1063
Gray Shorting 16 (0-F) 22.5° 07-1173 07-1073
07 Horizontal with shaft, with threaded bushing, IP68, with end-stop BCD Shorting 10 (0-9) 36° 07-1133-300000
Non-shorting 10 (0-9) 36° 07-1134-300000
BCD compl. Shorting 10 (0-9) 36° 07-1143-300000
Hex Shorting 16 (0-F) 22.5° 07-1153-300000
Non-shorting 16 (0-F) 22.5° 07-1154-300000
Hex compl. Shorting 16 (0-F) 22.5° 07-1163-300000
Gray Shorting 16 (0-F) 22.5° 07-1173-300000
07 Horizontal w/ shaft, w/ threaded bushing, IP68, endless rotating BCD Shorting 10 (0-9) 36° 07-1033-300000
Non-shorting 10 (0-9) 36° 07-1034-300000
BCD compl. Shorting 10 (0-9) 36° 07-1043-300000
Hex Shorting 16 (0-F) 22.5° 07-1053-300000
Non-shorting 16 (0-F) 22.5° 07-1054-300000
Hex compl. Shorting 16 (0-F) 22.5° 07-1063-300000
Gray Shorting 16 (0-F) 22.5° 07-1073-300000
07 Horizontal Screwdriver with bezel / front panel operation BCD Shorting 10 (0-9) 36° 07-4133 07-4033
Non-shorting 10 (0-9) 36° 07-4134 07-4034
BCD compl. Shorting 10 (0-9) 36° 07-4143 07-4043
Hex Shorting 16 (0-F) 22.5° 07-4153 07-4053
Non-shorting 16 (0-F) 22.5° 07-4154 07-4054
Hex compl. Shorting 16 (0-F) 22.5° 07-4163 07-4063
Gray Shorting 16 (0-F) 22.5° 07-4073
07 Horizontal Screwdriver without bezel BCD Shorting 10 (0-9) 36° 07-0133
Non-shorting 10 (0-9) 36° 07-0134 07-0034
BCD compl. Shorting 10 (0-9) 36° 07-0143
Hex Shorting 16 (0-F) 22.5° 07-0153 07-0053
Non-shorting 16 (0-F) 22.5° 07-0154 07-0054
Hex compl. Shorting 16 (0-F) 22.5° 07-0163
Gray Shorting 16 (0-F) 22.5° 07-0173 07-0073
C07A Horizontal with threaded bushing, IP68, with end-stop Hex Shorting 16 (0-F) 22.5° C07A1153-300000
Non-shorting 16 (0-F) 22.5° C07A1154-300000
Hex compl. Shorting 16 (0-F) 22.5° C07A1163-300000
Gray Shorting 16 (0-F) 22.5° C07A1173-300000
07 Vertical with shaft, without threaded bushing BCD Shorting 10 (0-9) 36° 07-3133 07-3033
Non-shorting 10 (0-9) 36° 07-3134 07-3034
BCD compl. Shorting 10 (0-9) 36° 07-3143 07-3043
Hex Shorting 16 (0-F) 22.5° 07-3153 07-3053
Non-shorting 16 (0-F) 22.5° 07-3154 07-3054
Hex compl. Shorting 16 (0-F) 22.5° 07-3163 07-3063
Gray Shorting 16 (0-F) 22.5° 07-3173 07-3073
07 Vertical with shaft, with threaded bushing, IP68, with end-stop BCD Shorting 10 (0-9) 36° 07-3133-300000
Non-shorting 10 (0-9) 36° 07-3134-300000
BCD compl. Shorting 10 (0-9) 36° 07-3143-300000
Hex Shorting 16 (0-F) 22.5° 07-3153-300000
Non-shorting 16 (0-F) 22.5° 07-3154-300000
Hex compl. Shorting 16 (0-F) 22.5° 07-3163-300000
Gray Shorting 16 (0-F) 22.5° 07-3173-300000
07 Vertical with shaft, with threaded bushing, IP68, endless rotating BCD Shorting 10 (0-9) 36° 07-3033-300000
Non-shorting 10 (0-9) 36° 07-3034-300000
BCD compl. Shorting 10 (0-9) 36° 07-3043-300000
Hex Shorting 16 (0-F) 22.5° 07-3053-300000
Non-shorting 16 (0-F) 22.5° 07-3054-300000
Hex compl. Shorting 16 (0-F) 22.5° 07-3063-300000
Gray Shorting 16 (0-F) 22.5° 07-3073-300000
07 Vertical Screwdriver without bezel BCD Shorting 10 (0-9) 36° 07-2133 07-2033
Non-shorting 10 (0-9) 36° 07-2134 07-2034
BCD compl. Shorting 10 (0-9) 36° 07-2143
Hex Shorting 16 (0-F) 22.5° 07-2153 07-2053
Non-shorting 16 (0-F) 22.5° 07-2154
Hex compl. Shorting 16 (0-F) 22.5° 07-2163 07-2063
Gray Shorting 16 (0-F) 22.5° 07-2173
C07A Vertical threaded bushing, IP68, with end-stop Hex Shorting 16 (0-F) 22.5° C07A3153-300000
Non-shorting 16 (0-F) 22.5° C07A3154-300000
Hex compl. Shorting 16 (0-F) 22.5° C07A3163-300000
Gray Shorting 16 (0-F) 22.5° C07A3173-300000
