Type 01 - Rotary Selector Switch

Product Type: Rotary Switch

Manufacturer: Elma

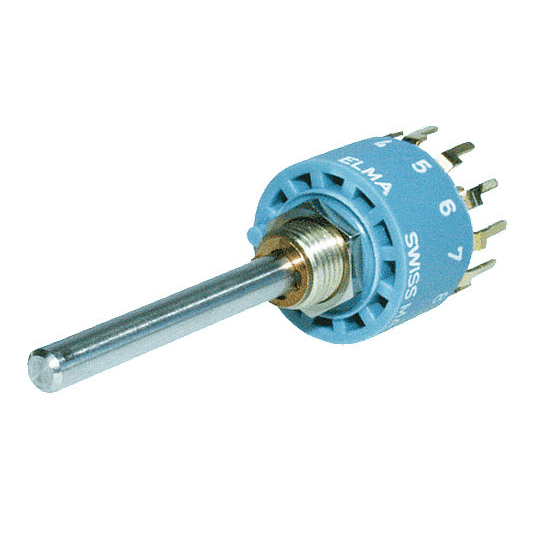

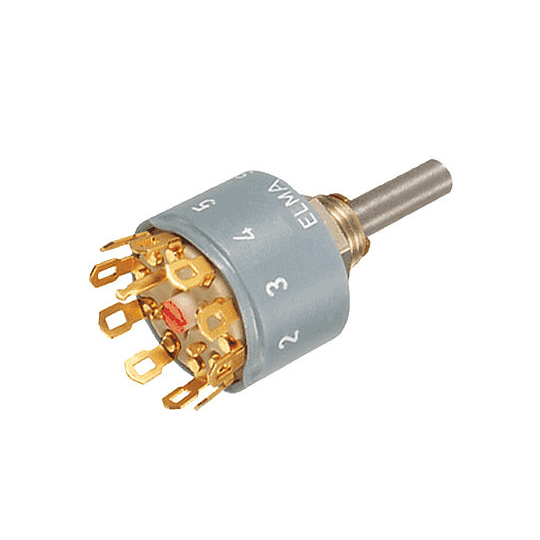

The Type 01 rotary selector switch from Elma is a precision selector switch offered in a choice of 6, 10 or 12 position variations.

Or call 01522 244849

This product can also be found in the following categories:

The Type 01 rotary selector switch from Elma is a precision selector switch offered in a choice of 6, 10 or 12 position variations. Designed with 3 microns of gold plating on the contacts the type 01 series’ is rated to a minimum of 25,000 switching cycles. Engineers also have a choice of either shorting or non-shorting variations and the option of 2, 4 or 6Ncm switching torques.

The type 01 series is also a rugged switch offering front panel sealing of up to IP68 and an operating temperature of -45°C to +85°C. The housing is fibre enforced plastic with Nickel Silver bushings and a stainless steel shaft. The shaft is available in diameters of 3mm, 4mm and 6mm in a variety of shaft lengths.

As a precision and robust selector switch, the Type 01 is found in many demanding applications such as Industrial Controls, Avionics and related Instrumentation, Medical Devices, High-End Audio Equipment, and Testing Equipment.

Mechanical Life25,000 Cycles
Number of Positions6, 10, 12
Max Voltage42VDC
Max Current2A
Ip RatingIP60, IP68
Operating Temperature-45°C to +85°C
NUMBER OF WAFERS FUNCTION PART NUMBER
(MAX 2 WAFERS AVAILABLE) (POLES X POSITIONS) WITH SOLDER EYELETS WITH PINS FOR PCB
INDEXING ANGLE 30°, SHORTING 1 1 x 12, endless rotating 01-1123 01-1123-20
INDEXING ANGLE 30°, SHORTING 2 2 x 12, endless rotating 01-2123 _
INDEXING ANGLE 30°, SHORTING 1 1 x 12 01-1183 01-1183-20
INDEXING ANGLE 30°, SHORTING 2 2 x 12 01-2183 _
INDEXING ANGLE 30°, SHORTING 1 1 x 11 01-1113 01-1113-20
INDEXING ANGLE 30°, SHORTING 2 2 x 11 01-2113 _
INDEXING ANGLE 30°, SHORTING 1 2 x 6 01-1263 01-1263-20
INDEXING ANGLE 30°, SHORTING 2 4 x 6 01-2263 _
INDEXING ANGLE 30°, SHORTING 1 4 x 3 01-1433 01-1433-20
INDEXING ANGLE 30°, SHORTING 2 8 x 3 01-2433 _
INDEXING ANGLE 30°, NON-SHORTING 1 1 x 12, endless rotating 01-1124 01-1124-20
INDEXING ANGLE 30°, NON-SHORTING 1 1 x 12 01-1184 01-1184-20
INDEXING ANGLE 30°, NON-SHORTING 1 1 x 11 01-1114 01-1114-20
INDEXING ANGLE 30°, NON-SHORTING 1 2 x 6 01-1264 01-1264-20
INDEXING ANGLE 30°, NON-SHORTING 1 4 x 3 01-1434 01-1434-20
INDEXING ANGLE 36°, SHORTING 1 1 x 10, endless rotating 01-1103 01-1103-20
INDEXING ANGLE 36°, SHORTING 1 1 x 10 01-1193 01-1193-20
INDEXING ANGLE 60°, NON-SHORTING 1 1 x 6, endless rotating 01-1104 01-1104-20
INDEXING ANGLE 60°, NON-SHORTING 1 1 x 6 01-1164 01-1164-20
INDEXING ANGLE 60°, NON-SHORTING 1 2 x 3 01-1234 01-1234-20
INDEXING ANGLE 60°, NON-SHORTING 1 4 x 2 01-1424 01-1424-20
STOP PINS PACKAGING UNIT PART NUMBER
10 pcs. 4007-36
50 pcs. 4007-35
