MIS Series

    The MIS series of key lock switches from Lorlin are double pole switches with 2 positions and momentary operation. Designed for cut outs of 19mm diameter using flat key types offering 2000 key combinations with the key being removable in 1st and 2nd positions and the activation of the 2nd position at 90°. Electrically rated to 4A at 240VAC with solder or PCB style terminations and a mechanical life of 15,000 cycles. The MIS series is perfect for applications where security for system activation is required such as Industrial Control Systems, Robotic Systems, Automated Systems, and Secure Control Panels.

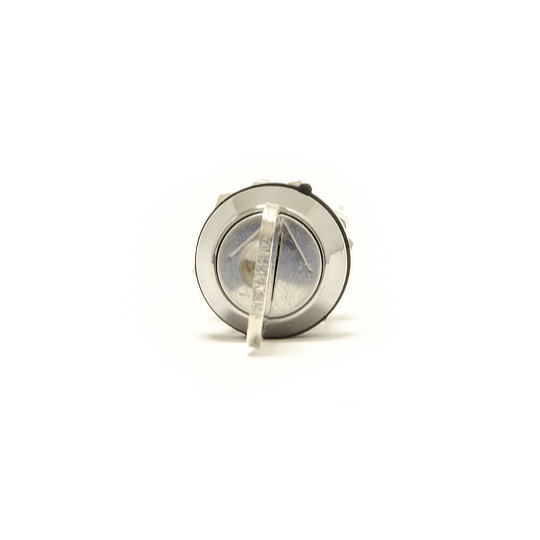

    MIS Series — image 1 MIS Series — image 2 MIS Series — image 3
    Lorlin logo

    Product Variations

    6 results
    Product Code Mounting Style Current Rating A Voltage Rating VAC Panel Cut out size mm Housing Material Mechanical Life Switching Mode Lock Housing Material Key Material Compliance Number of Poles Number of Positions Switching Index Angle Key Removable Positions Key Code Termination Style Termination Plating
    MIS-8659 Double Flat 80 240 19.100000000000001 Polycarbonate 15000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, EN61058-1 2 2 90° 1 Differs Solder Gold
    MIS-8660 Double Flat 80 240 19.100000000000001 Polycarbonate 15000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, EN61058-1 2 2 90° 1 Same Solder Gold
    MIS-8661 Double Flat 80 240 19.100000000000001 Polycarbonate 15000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, EN61058-1 2 3 90° 1 Differs Solder Gold
    MIS-8662 Double Flat 80 240 19.100000000000001 Polycarbonate 15000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, EN61058-1 2 3 90° 1 Same Solder Gold
    MIS-8663 Double Flat 80 240 19.100000000000001 Polycarbonate 15000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, EN61058-1 2 3 90° 1 Differs Solder Gold
    MIS-8664 Double Flat 80 240 19.100000000000001 Polycarbonate 15000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, EN61058-1 2 3 90° 1 Same Solder Gold
