LS16 Series

    The LS16 series of key lock switches from Lorlin are single pole switches with 2 positions and maintained operation. Designed for cut outs of 16mm diameter and using radial cylinder 7 pin keys offering 100 key combinations with the key being removable in 1st and 2nd position and activation of the 2nd position at 90°. Electrically rated to 3A at 125VAC or 2A at 250VAC with solder style terminations and a mechanical life of 10,000 cycles. The LS16 series is perfect for applications where security for system activation is required such as Industrial Control Systems, Robotic Systems, Automated Systems, and Secure Control Panels.

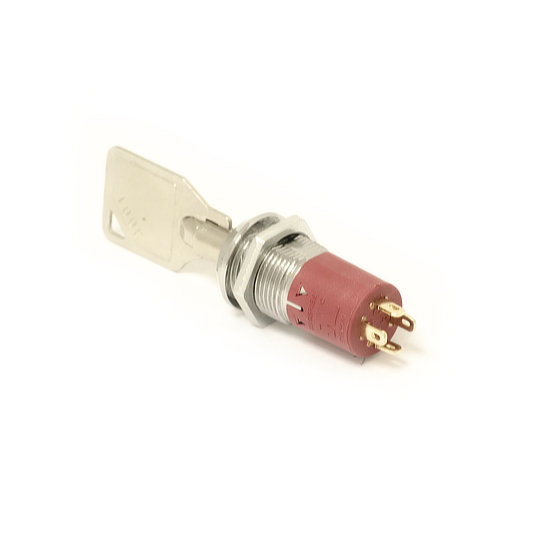

    LS16 Series — image 1 LS16 Series — image 2 LS16 Series — image 3
    Lorlin logo

    Product Variations

    2 results
    Product Code Mounting Style Current Rating A Voltage Rating VAC Panel Cut out size mm Mechanical Life Switching Mode Lock Housing Material Key Material Compliance Number of Poles Number of Positions Switching Index Angle Key Removable Positions Key Code Termination Style Termination Plating
    LS16-A-S-2 Double Flat 2 240 16 10000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, UL 1 2 90° 1, 3 Same Solder Gold
    LS16-A-D-2 Double Flat 2 240 16 10000 Non-Shorting Chromium plated Zinc Alloy Nickel plated Mild Steel RoHS, UL 1 2 90° 1, 3 Differs Solder Gold
