3A Series

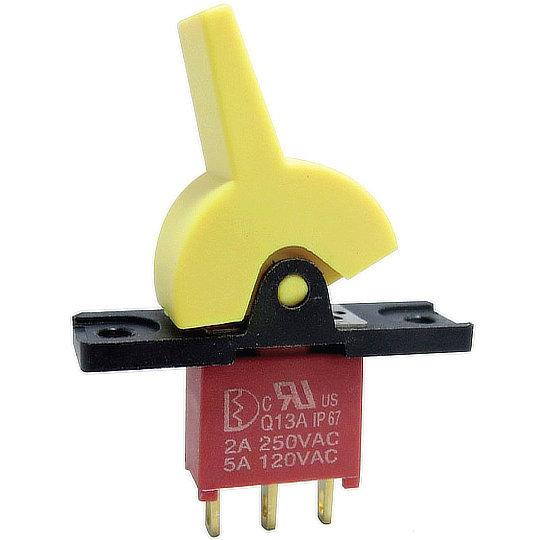

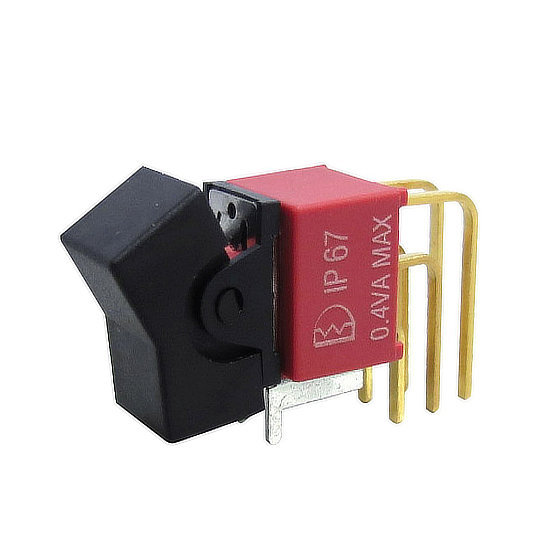

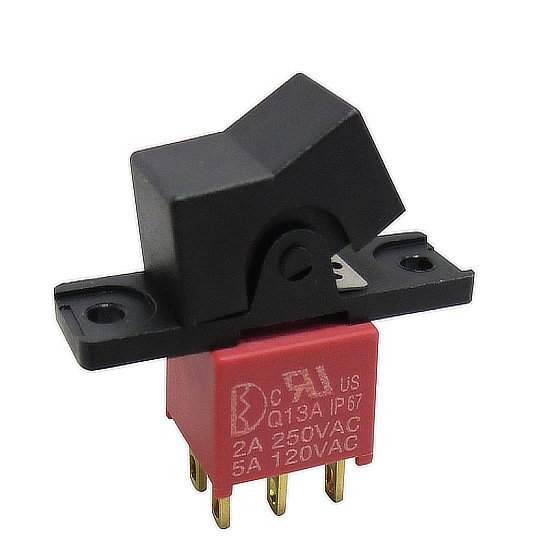

The 3A series of sealed miniature rocker switches from Dailywell are single, double or 3 pole switches with double-throw operation and maintained or momentary action. Available in multiple actuator styles including rockers and paddles with a choice of 9 actuator colours and various legends.

Designed with flow soldering and cleaning processes in mind the 3A series have a choice of silver, gold over silver or gold terminations in either solder, PC thru-hole, quick connect or in 90° angle styles. Electrically rated for 5A at 120VAC/28VDC or 2A at 250VAC with silver/gold over silver contacts, or low level at 0.4VA at 20VAC/DC with gold contacts.

This makes the 3A series perfect for applications such as Instrumentation, Test Equipment, Telecommunications, Networking and Audio/Video Mixing Boards.
