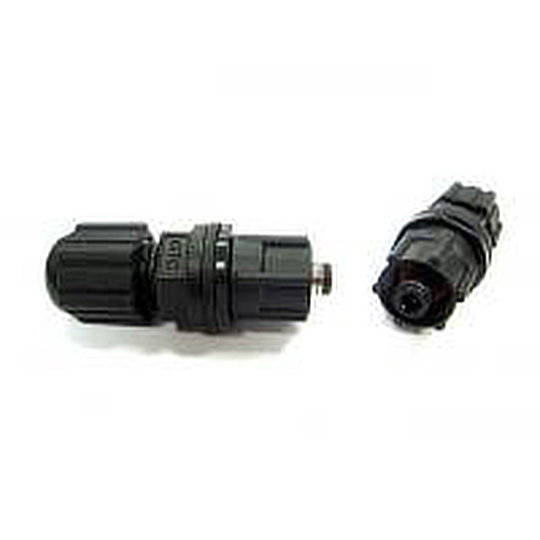

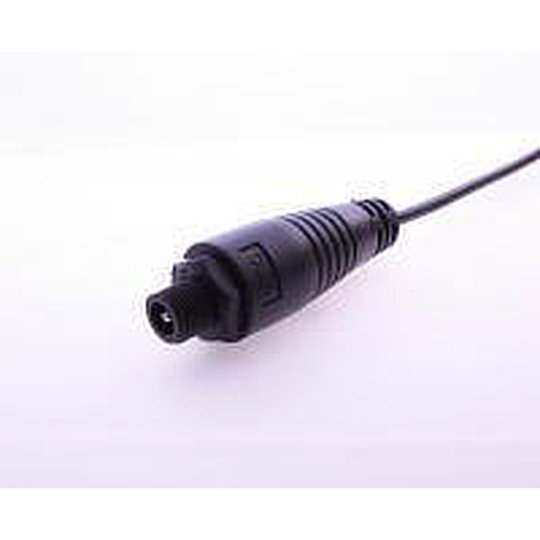

2.5mm DC Connector
The DC series of waterproof circular connectors from GT Contact are ruggedly built with screw-type couplings and sealed to IP67. They can be used in-line with cable to cable connections or for cable to panel-mount connections. Designed for panel cut-outs of 11mm with a copper alloy nickel-plated 5A contact with solder or pre-wired terminations. The DC series of panel connectors are also rear potted giving IP67 protection to products even if the connector is unmated or sealing cap not connected. The DC series is perfect for applications such as Outdoor AP, LED Lighting, Outdoor Security Systems, Rechargeable Devices, Medical Devices and Marine Equipment.
Product Variations
5 results
| Product Code | Panel Cut out Size Inches | Compliance | Number of Pins | IP Rating | Current Rating A | Gender | Termination Style | Mating Style | Housing Material | Housing Style |
|---|---|---|---|---|---|---|---|---|---|---|
| GT1B0102 | 7/16" | RoHS | 2 | IP67 | 7 | Female | Solder | Threaded | Plastic | Front-nut Panel Mount |
| GT1B0103-XX | 7/16" | RoHS | 2 | IP67 | 7 | Female | Pre-wired | Threaded | Plastic | Front-nut Panel Mount |
| GT1B0700-XX | 7/16" | RoHS | 2 | IP67 | 7 | Male | Pre-wired | Threaded | Plastic | Cable Mount |
| GT1B0202 | 7/16" | RoHS | 2 | IP67 | 7 | Male | Solder | Threaded | Plastic | Cable Mount |
| GT1B0400-XX | 7/16" | RoHS | 2 | IP67 | 7 | Female | Pre-wired | Threaded | Plastic | In-Line Cable Mount |
